SHOT MANAGER
Workflow Guides
Shot List Hierarchy
The Shotlist datablock, List and Shot Source, Linking and Shot Properties
Shot List
Output Node Tree

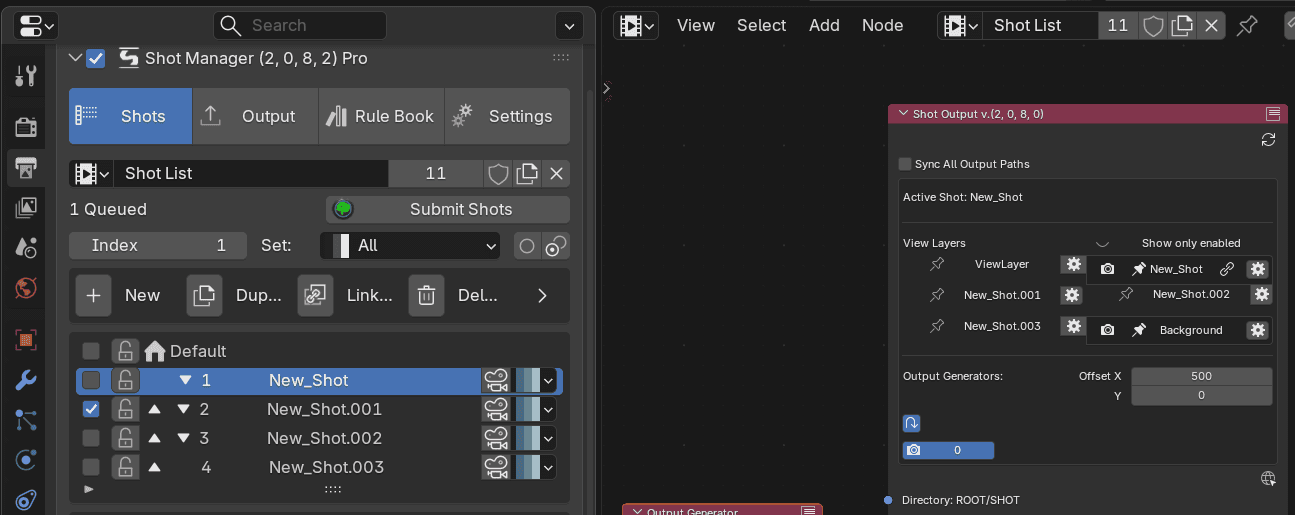

The Shot List data-block consists of two components, the essential shot list and the optional output node tree.
The data-block can be shared between scene's and even appended between files.
Shot List
Default Shot
Shot1
Shot2
Shot3

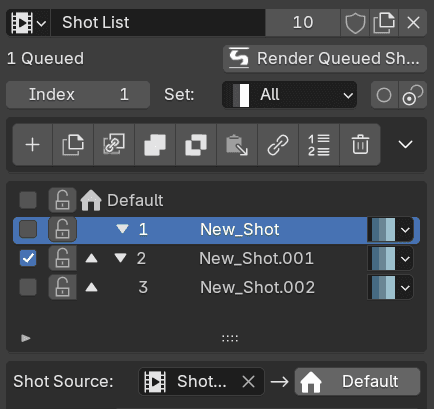

Each Shot List contains a Default shot which acts as a basis for all other shots.
The Default Shot holds the default property values and let's us chose which properties are available.
Shot2
Shot1
Linked Shot
Default Shot
Shot List
Shots can be linked to other Shots and inherit their properties.
This can be useful when making design iterations by overriding the Suffix or perhaps for re-rendering specific frame ranges.
It can also be useful to make edit and render versions of a shot where a differing primary view layers are set.
Shot
Properties
Shot Source
Linked Property

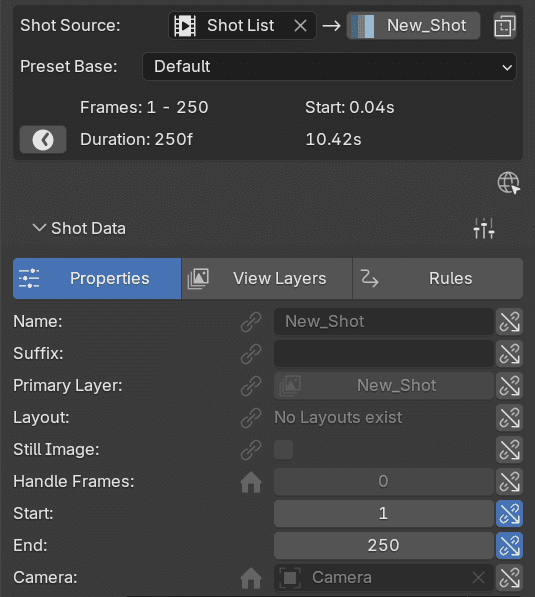

Most individual properties can be overridden, effectively unlinking them from the source Shot. However, some are locked meaning they must be defined by the active Shot.

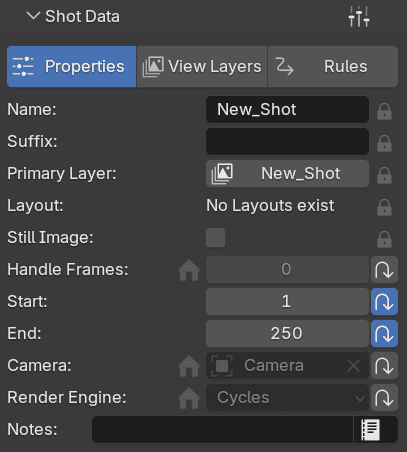

If the source Shot is a Default shot then Name and Suffix must be unique, Primary Layer defaults as the active View Layer when the shot is created, Still Image is borrowed from the Default Shot but is not linked.
Notes are never inherited.
Out sockets on the Shot Output node and Shot View layer states also use this system of inheritance.
